Projekt: HP MULTI SYSTEM Flexible

SERIA: Flexible HIGH POWER MULTI SYSTEM

Flexible: HIGH POWER MULTI SYSTEM series

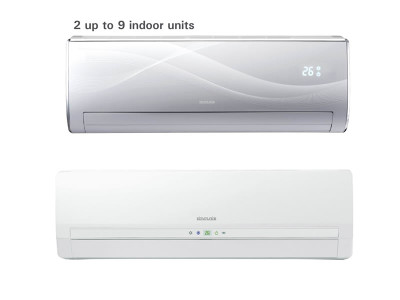

For wider possibilities and higher capacities, opt for HIGH POWER MULTI SYSTEM. This system offers even more complex solutions for connection 2 up to 9 indoor units for 1 outdoor unit.

Reasons to choose this product

HIGH POWER MULTI SYSTEM can work efficiently up to 45 m of elevation difference and thus greatly fills the space between the residential and commercial air-conditioning systems. You can choose the type of indoor unit and requested capacity according to combination table. The system can be controlled separately or centrally.

The device contains fluorinated greenhouse gases covered by the Kyoto Protocol. Used refrigerant R410A (50% HFC-32, 50% HFC-125), GWP 2088, environmentally friendly.

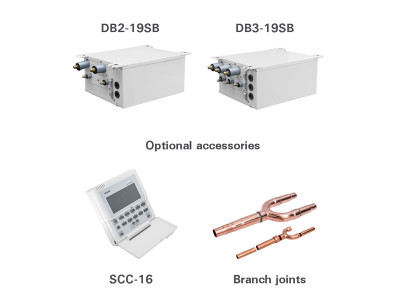

Important accessories

  • Distribution boxes DB2-19SB or DB3-19SB
  • Branch joints
  • Central controller SCC-16

Parameters

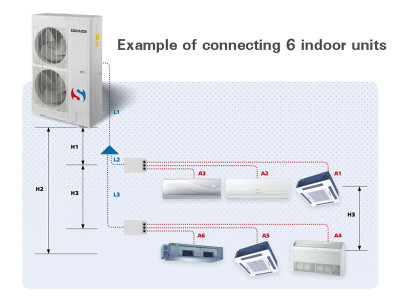

  • Total pipe length 135/145m
  • Maximum elevation 45m
  • Inverter technology
  • Free combination up to 9 indoor units

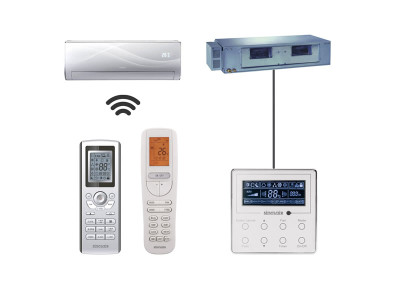

  • Centrally or infrared control
  • Automatic scanning of connected indoor units
  • Automatic addressing of indoor units
  • Service parameter setting
  • Indication of the running mode
  • Error report notification
  • 3-year warranty

Benefits of product

DC INVERTER TECHNOLOGY

Standard air conditioners have a fixed speed compressor and therefore have no ability to reduce the power consumption as they are not able to vary the load. With a DC Inverter drive, the unit can work on a partial load thereby reduces the power consumption not only on start up but also on running costs.

FLEXIBLE INSTALLATION

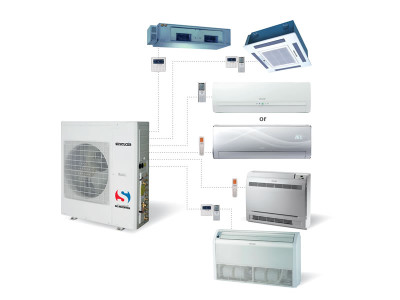

SINCLAIR HIGH POWER MULTI SYSTEM connects indoor units of different types and capacities into one system. Is it unique solution for every residential and office spaces. Moreover, it provides individual control of room temperature settings.
